Product Description

Single Bus Buffer Gate With 3-State Output
In a SOT23-5 and SC70-5 Package

Product Features

Wide Supply Voltage Range : 1.65 V to 5.5 V
Max. TPD of 4.5 ns at VCC = 3.3 V
Low Power Consumption, 10 μA (Max. ICC)
±24 mA Output Drive at VCC = 3.3 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 :2000 V Human-Body Model (A114-A),1000 V Charged-Device Model (C101)
Operating temperature Range : -40°C to 125°C

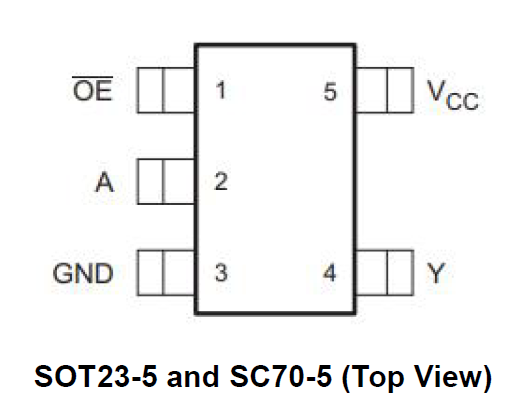

Available Package : SOT23-5 and SC70-5

Applications

Active Noise Cancellation (ANC) Blood Pressure Monitor Embedded PC Solid State Drive (SSD) : Client and Enterprise TV : LCD/Digital and High-Definition (HDTV) Tablet : Enterprise Video Analytics : Server Wireless Headset, Keyboard, and Mouse Power Supply : Telecom/Server AC/DC Controller

Product Introduction

Product Specifications
Consultation List

Product Introduction

The PJ74LVC1G125 is a single bus buffer gate. The device is designed for 1.65 V to 5.5 V for VCC operation, it can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. The PJ74LVC1G125 device is a single line driver with a 3-state output. The output is disabled when the output-enable (OE(____)) input is high. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The PJ74LVC1G125 is available in SOT23-5 and SC70-5 packages.

Product Specifications

Recommended Operating Conditions

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC
Operating
1.65
5.5
V
Data retention only
1.5
-
V
Input voltage
VI
0
5.5
V
Output voltage
VO
VCC
V
High-level input voltage
VIH
VCC = 1.65 V to 1.95 V
0.65 x VCC
-
V
High-level input voltage
VIH
VCC = 2.3 V to 2.7 V
1.7
-
V
High-level input voltage
VIH
VCC = 3 V to 3.6 V
2
-
V
High-level input voltage
VIH
VCC = 4.5 V to 5.5 V
0.7 x VCC
-
V
Low-level input voltage
VIL
VCC = 1.65 V to 1.95 V
-
0.35 x VCC
V
Low-level input voltage
VIL
VCC = 2.3 V to 2.7 V
-
0.7
V
Low-level input voltage
VIL
VCC = 3 V to 3.6 V
-
0.8
V
Low-level input voltage
VIL
VCC = 4.5 V to 5.5 V
-
0.3 x VCC
V
High-level output current
IOH
VCC = 1.65 V
-
-4
mA
High-level output current
IOH
VCC = 2.3 V
-
-8
mA
High-level output current
IOH
VCC = 3 V
-
-16
mA
High-level output current
IOH
VCC = 3 V
-
-24
mA
High-level output current
IOH
VCC = 4.5 V
-
-32
mA
Low-level output current
IOL
VCC = 1.65 V
-
4
mA
Low-level output current
IOL
VCC = 2.3 V
-
8
mA
Low-level output current
IOL
VCC = 3 V
-
16
mA
Low-level output current
IOL
VCC = 3 V
-
24
mA
Low-level output current
IOL
VCC = 4.5 V
-
32
mA
Input transition rise or fall rate
△T/△V
VCC = 1.8 V ±0.15 V, 2.5 V ±0.2 V
-
20
ns/V
Input transition rise or fall rate
△T/△V
VCC = 3.3 V ±0.3 V
-
10
ns/V
Input transition rise or fall rate
△T/△V
VCC = 5 V ±0.5 V
-
5
ns/V
Operating temperature
TA
-
-40
125
°C

Key Electrical Characteristics

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
High-level output voltage
VOH
VCC = 1.65 V to 5.5 V, IOH = -100 μA
VCC-0.1
-
V
High-level output voltage
VOH
VCC = 1.65 V, IOH = -4 mA
1.2
-
V
High-level output voltage
VOH
VCC = 2.3 V, IOH = -8 mA
1.9
-
V
High-level output voltage
VOH
VCC = 3 V, IOH = -16 mA
2.4
-
V
High-level output voltage
VOH
VCC = 3 V, IOH = -24 mA
2.3
-
V
High-level output voltage
VOH
VCC = 4.5 V, IOH = -32 mA
3.8
-
V
Low-level output voltage
VOL
VCC = 1.65~5.5 V, IOL = 100 μA
-
0.1
V
Low-level output voltage
VOL
VCC = 1.65 V, IOL = 4 mA
-
0.45
V
Low-level output voltage
VOL
VCC = 2.3 V, IOL = 8 mA
-
0.3
V
Low-level output voltage
VOL
VCC = 3 V, IOL = 16 mA
-
0.4
V
Low-level output voltage
VOL
VCC = 3 V, IOL = 24 mA
-
0.55
V
Low-level output voltage
VOL
VCC = 4.5 V, IOL = 32 mA
-
0.55
V
Input leakage current
IL
VI = 5.5 V or GND, VCC = 0 V to 5.5 V
-
±5
μA
Power off leakage current
IOFF
VI or VO = 5.5 V, VCC = 0 V
-
±10
μA
Supply current
ICC
VI = 5.5 V or GND, IO = 0,VCC = 1.65 V to 5.5 V
-
10
μA
Additional supply current per input pin
△ICC
VCC = 3 V to 5.5 V, one input at VCC - 0.6 V, other input at VCC or GND
-
500
μA
