Product Description

Single Bus Buffer Gate With 3-State Output

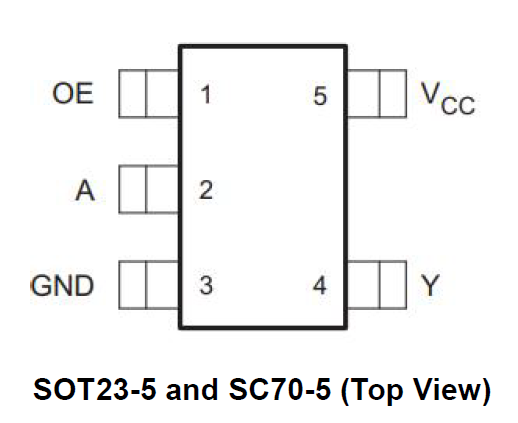

In a SOT23-5 and SC70-5 Package

Product Features

WideSupply Voltage Range : 1.65 V to 5.5 V
Max.TPDof 4.5 ns at VCC = 3.3 V
LowPowerConsumption, 10 μA(Max. ICC)
±24mAOutputDrive at VCC = 3.3 V
Latch-Up Performance Exceeds 100 mAPer JESD 78, Class II
ESDProtection Exceeds JESD 22:2000VHuman-BodyModel(A114-A),1000VCharged-Device Model (C101)
Operating temperature Range :-40°C to 125°C
Available Package : SOT23-5 and SC70-5

Applications

CableModemTermination System High-Speed DataAcquisition and Generation Military: Radar and Sonar MotorControl: High-Voltage PowerLine Communication Modem SSD:Internal or Externa VideoBroadcasting and Infrastructure:Scalable Platform VideoBroadcasting: IP-Based Multi-Format Transcoder VideoCommunications System

Product Introduction

Product Specifications
Consultation List

Product Introduction

The PJ74LVC1G126 is a single bus buffer gate. The device is designed for 1.65 V to 5.5 V VCC operation, it can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. The PJ74LVC1G126 device is a single line driver with a 3-state output. The output is disabled when the output-enable input is low. The PJ74LVC1G126 is available in SOT23-5 and SC70-5 packages.

Product Specifications

RecommendedOperatingConditions

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC​
Operating
1.65
5.5
V
Supply voltage
VCC​
Data retention only
1.5
-
V
Input voltage
VI​
-
0
5.5
V
Output voltage
VO​
-
VCC​
V
High-level input voltage
VIH​
VCC​=1.65 V to 1.95 V
0.65×VCC​
-
V
High-level input voltage
VIH​
VCC​=2.3 V to 2.7 V
1.7
-
V
High-level input voltage
VIH​
VCC​=3 V to 3.6 V
2
-
V
High-level input voltage
VIH​
VCC​=4.5 V to 5.5 V
0.7×VCC​
-
V
Low-level input voltage
VIL​
VCC​=1.65 V to 1.95 V
-
0.35×VCC​
V
Low-level input voltage
VIL​
VCC​=2.3 V to 2.7 V
-
0.7
V
Low-level input voltage
VIL​
VCC​=3 V to 3.6 V
-
0.8
V
Low-level input voltage
VIL​
VCC​=4.5 V to 5.5 V
-
0.3×VCC​
V
High-level output current
IOH​
VCC​=1.65 V
-
-4
mA
High-level output current
IOH​
VCC​=2.3 V
-
-8
mA
High-level output current
IOH​
VCC​=3 V
-
-16
mA
High-level output current
IOH​
VCC​=3 V
-
-24
mA
High-level output current
IOH​
VCC​=4.5 V
-
-32
mA
Low-level output current
IOL​
VCC​=1.65 V
-
4
mA
Low-level output current
IOL​
VCC​=2.3 V
-
8
mA
Low-level output current
IOL​
VCC​=3 V
-
16
mA
Low-level output current
IOL​
VCC​=3 V
-
24
mA
Low-level output current
IOL​
VCC​=4.5 V
-
32
mA
Input transition rise or fall rate
ΔT/ΔV
VCC​=1.8 V ±0.15 V, 2.5 V ±0.2 V
-
20
ns/V
Input transition rise or fall rate
ΔT/ΔV
VCC​=3.3 V ±0.3 V
-
10
ns/V
Input transition rise or fall rate
ΔT/ΔV
VCC​=5 V ±0.5 V
-
5
ns/V
Operating temperature
TA​
-
-40
125
°C

Key Electrical Characteristics

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
High-level output voltage
VOH​
VCC​=1.65 V to 5.5 V, IOH​=−100 μA
VCC​−0.1
-
V
High-level output voltage
VOH​
VCC​=1.65 V, IOH​=−4 mA
1.2
-
V
High-level output voltage
VOH​
VCC​=2.3 V, IOH​=−8 mA
1.9
-
V
High-level output voltage
VOH​
VCC​=3 V, IOH​=−16 mA
2.4
-
V
High-level output voltage
VOH​
VCC​=3 V, IOH​=−24 mA
2.3
-
V
High-level output voltage
VOH​
VCC​=4.5 V, IOH​=−32 mA
3.8
-
V
Low-level output voltage
VOL​
VCC​=1.65 V to 5.5 V, IOL​=100 μA
-
0.1
V
Low-level output voltage
VOL​
VCC​=1.65 V, IOL​=4 mA
-
0.45
V
Low-level output voltage
VOL​
VCC​=2.3 V, IOL​=8 mA
-
0.3
V
Low-level output voltage
VOL​
VCC​=3 V, IOL​=16 mA
-
0.4
V
Low-level output voltage
VOL​
VCC​=3 V, IOL​=24 mA
-
0.55
V
Low-level output voltage
VOL​
VCC​=4.5 V, IOL​=32 mA
-
0.55
V
Input leakage current
IL​
VI​=5.5 V or GND, VCC​=0 V to 5.5 V
-
±5
μA
Power off leakage current
IOFF​
VI​ or VO​=5.5 V, VCC​=0 V
-
±10
μA
Supply current
ICC​
VI​=5.5 V or GND, IO​=0, VCC​=1.65 V to 5.5 V
-
10
μA
Additional supply current per input pin
ΔICC​
VCC​=3 V to 5.5 V, one input at VCC​−0.6 V, other input at VCC​ or GND
-
500
μA
