PJ74LVC1G14

Datasheet
Add to Consultation List

Product Description

Single Schmitt-Trigger Inverter
In a SOT23-5 and SC70-5 Package

Product Features

WideSupply Voltage Range : 1.65 V to 5.5 V
Max.TPDof 4.6 ns at VCC = 3.3 V
LowPowerConsumption, 10 μA(Max. ICC)
±24mAOutputDrive at VCC = 3.3 V
Latch-Up Performance Exceeds 100 mAPer JESD 78, Class II
ESDProtection Exceeds JESD 22:2000VHuman-BodyModel(A114-A),1000VCharged-Device Model (C101)
Operating temperature Range :-40°C to 125°C

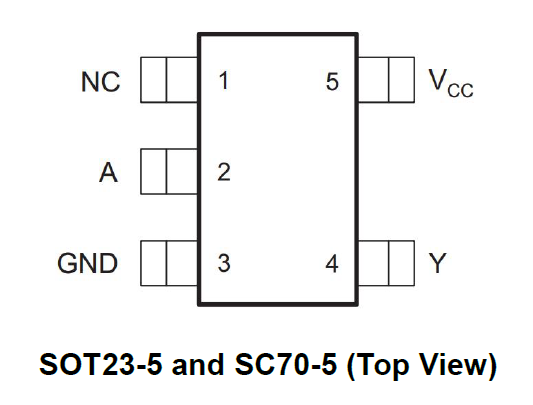

Available Package : SOT23-5 and SC70-5

Product Introduction

Product Specifications

Related Files

Consultation List

Product Introduction

The PJ74LVC1G14 is a single Schmitt-trigger inverter. The device is designed for 1.65V to 5.5V for VCC operation, it can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V environments. The PJ74LVC1G14 device contains one inverter and performs the Boolean function Y = A. The device functions as an independent inverter with Schmitt-trigger inputs, so the device has different input threshold levels for positive-going (VT+) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device. The PJ74LVC1G14 is available in SOT23-5 and SC70-5 packages.

Product Specifications

Recommended Operating Conditions

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC​
Operating
1.65
5.5
V
Supply voltage
VCC​
Data retention only
1.5
-
V
Input voltage
VI​
-
0
5.5
V
Output voltage
VO​
-
-
VCC​
V
High-level output current
IOH​
VCC​=1.65 V
-
-4
mA
High-level output current
IOH​
VCC​=2.3 V
-
-8
mA
High-level output current
IOH​
VCC​=3 V
-
-16
mA
High-level output current
IOH​
VCC​=3 V
-
-24
mA
High-level output current
IOH​
VCC​=4.5 V
-
-32
mA
Low-level output current
IOL​
VCC​=1.65 V
-
4
mA
Low-level output current
IOL​
VCC​=2.3 V
-
8
mA
Low-level output current
IOL​
VCC​=3 V
-
16
mA
Low-level output current
IOL​
VCC​=3 V
-
24
mA
Low-level output current
IOL​
VCC​=4.5 V
-
32
mA
Operating temperature
TA​
-
-40
125
°C

Key Electrical Characteristics

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Positive-going input threshold voltage
VT+​
VCC​=1.65 V
0.79
1.16
V
Positive-going input threshold voltage
VT+​
VCC​=2.3 V
1.11
1.56
V
Positive-going input threshold voltage
VT+​
VCC​=3 V
1.5
1.87
V
Positive-going input threshold voltage
VT+​
VCC​=4.5 V
2.16
2.74
V
Positive-going input threshold voltage
VT+​
VCC​=5.5 V
2.61
3.33
V
Negative-going input threshold voltage
VT−​
VCC​=1.65 V
0.39
0.62
V
Negative-going input threshold voltage
VT−​
VCC​=2.3 V
0.58
0.87
V
Negative-going input threshold voltage
VT−​
VCC​=3 V
0.84
1.14
V
Negative-going input threshold voltage
VT−​
VCC​=4.5 V
1.41
1.79
V
Negative-going input threshold voltage
VT−​
VCC​=5.5 V
1.87
2.29
V
Hysteresis Voltage
ΔVT​
VCC​=1.65 V
0.37
0.62
V
Hysteresis Voltage
ΔVT​
VCC​=2.3 V
0.48
0.77
V
Hysteresis Voltage
ΔVT​
VCC​=3 V
0.56
0.87
V
Hysteresis Voltage
ΔVT​
VCC​=4.5 V
0.71
1.04
V
Hysteresis Voltage
ΔVT​
VCC​=5.5 V
0.71
1.11
V
High-level output voltage
VOH​
VCC​=1.65~5.5 V, IOH​=100 μA
VCC​−0.1
-
V
High-level output voltage
VOH​
VCC​=1.65 V, IOH​=4 mA
1.2
-
V
High-level output voltage
VOH​
VCC​=2.3 V, IOH​=8 mA
1.9
-
V
High-level output voltage
VOH​
VCC​=3 V, IOH​=16 mA
2.4
-
V
High-level output voltage
VOH​
VCC​=3 V, IOH​=24 mA
2.3
-
V
High-level output voltage
VOH​
VCC​=4.5 V, IOH​=32 mA
3.8
-
V
Low-level output voltage
VOL​
VCC​=1.65~5.5 V, IOL​=100 μA
-
0.1
V
Low-level output voltage
VOL​
VCC​=1.65 V, IOL​=4 mA
-
0.45
V
Low-level output voltage
VOL​
VCC​=2.3 V, IOL​=8 mA
-
0.3
V
Low-level output voltage
VOL​
VCC​=3 V, IOL​=16 mA
-
0.4
V
Low-level output voltage
VOL​
VCC​=3 V, IOL​=24 mA
-
0.55
V
Low-level output voltage
VOL​
VCC​=4.5 V, IOL​=32 mA
-
0.55
V
Input leakage current
IL​
VIN​=5.5 V or GND, VCC​=0~5.5 V
-
±5
μA
Power off leakage current
IOFF​
VIN​ or GND, VCC​=0~5.5 V
-
±10
μA
Quiescent supply current
IQ​
VIN​=VCC​ or GND, IOUT​=0, VCC​=1.65~5.5 V
-
10
μA
Additional quiescent supply current per input pin
ΔIQ​
VCC​=3~5.5 V, one input at VCC​−0.6 V, other input at VCC​ or GND
-
500
μA
