PJ74AUP1G07

Signal Chain ICs

PJ74AUP1G07

Datasheet
Add to Consultation List

Product Description

Low-Power Single Buffer/Driver
With Open-Drain Output

Product Features

Inputs Accept Voltages 0.8V to 3.6 V
Max TPD of 5.4 ns at 3.3 V
Low Static-Consumption, 0.9 μA Max ICC
Low Noise Overshoot and Undershoot<10% of VCC
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input(Vhys= 250mV Typical 3.3V)
3.6V I/O Tolerant to Support Mixed-Mode Signal Operation
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22:2000-V Human-Body Model (A114-A),1000-V Charged-Device Model (C101)

Applications

ATCA Solutions Active Noise Cancellation (ANC) Barcode Scanner Blood Pressure Monitor CPAP Machine Cable Solutions DLP 3DMachine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy DLP 3DMachine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy Embedded PC Field Transmitter: Temperature or Pressure Sensor Fingerprint Biometrics HVAC: Heating, Ventilating, and Air Conditioning

Product Introduction

Product Specifications
Consultation List

Product Introduction

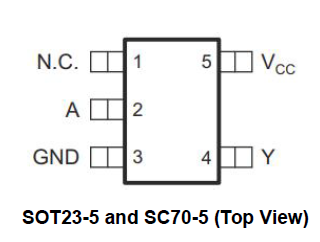

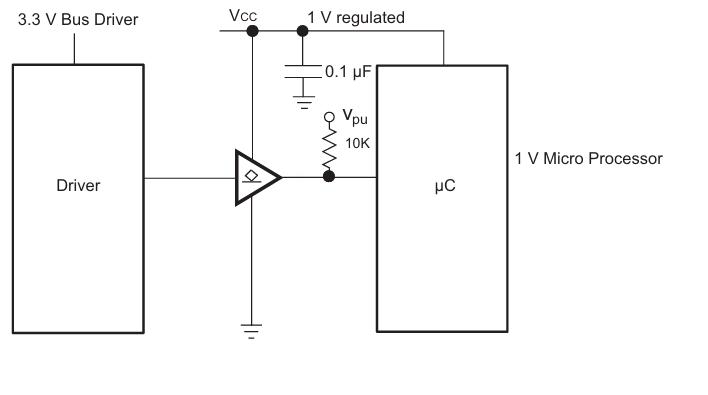

This single buffer/driver is designed for 0.8 V to 3.6 V VCC operation. The output of the PJ74AUP1G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The PJ74AUP1G07 is available in a variety of packages, including SOT23-5, SC70-5.

Product Specifications

Recommended Operating Conditions

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC
Operating
0.8
3.6
V
Input voltage
VI
-
0
3.6
V
Output voltage
VO
-
0
3.6
V
High- level input voltage
VIH
VCC = 0.8V
VCC
-
V
High- level input voltage
VIH
VCC = 1.1V to 1.95V
0.65 xVCC
-
V
High- level input voltage
VIH
VCC = 2.3V to 2.7V
1.6
-
V
High- level input voltage
VIH
VCC = 3V to 3.6V
2
-
V
Low- level input voltage
VIL
VCC = 0.8V
-
0
V
Low- level input voltage
VIL
VCC = 1.1V to 1.95V
-
0.35 x VCC
V
Low- level input voltage
VIL
VCC = 2.3V to 2.7V
-
0.7
V
Low- level input voltage
VIL
VCC = 3V to 3.6V
-
0.9
V
Low- level output current
IOL
VCC = 0.8V
-
20
μA
Low- level output current
IOL
VCC = 1.1V
-
1.1
mA
Low- level output current
IOL
VCC = 1.4V
-
1.7
mA
Low- level output current
IOL
VCC = 1.65V
-
1.9
mA
Low- level output current
IOL
VCC = 2.3V
-
3.1
mA
Low- level output current
IOL
VCC = 3V
-
4
mA
Input transition rise or fall rate
△T/△V
-
-
200
ns/V
Operating temperature
TA
-
-40
85
°C

Key Electrical Characteristics

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Low- level output voltage
VOL
VCC = 0.8~3.6V, IOL= 20μA
-
0.1
V
Low- level output voltage
VOL
VCC = 1.1V, IOL= 1.1mA
-
0.3 xVCC
V
Low- level output voltage
VOL
VCC = 1.4V, IOL= 1.7mA
-
0.31
V
Low- level output voltage
VOL
VCC = 1.65V, IOL= 1.9mA
-
0.31
V
Low- level output voltage
VOL
VCC = 2.3V, IOL= 2.3mA
-
0.31
V
Low- level output voltage
VOL
VCC = 2.3V, IOL= 3.1mA
-
0.44
V
Low- level output voltage
VOL
VCC = 3V, IOL= 2.7mA
-
0.31
V
Low- level output voltage
VOL
VCC = 3V, IOL= 4mA
-
0.44
V
Input leakage current
Il
VIN= 3.6V or GND, VCC= 0~3.6V
-
0.1
μA
Power off leakage current
IOFF
VI or VO=0V to 3.6V, VCC=0V
-
0.2
μA
Supply current
ICC
VI= GND or (VCC to 3.6V), IOUT=0, VCC=0.8~3.6V
-
0.5
μA
Additional supply current per input pin
△ICC
VI= VCC-0.6V, IOUT=0
-
40
μA
