PJ74AUP1G08

Datasheet
Add to Consultation List

Product Description

Low-Power Single 2-Input Positive-AND Gate

Product Features

InputsAccept Voltages 0.8V to 3.6 V
MaxTPDof4.8 ns at 3.3 V
LowStatic-Consumption, 0.9-μA Max ICC
LowNoiseOvershoot and Undershoot<10% of VCC
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input(Vhys= 250mV Typical 3.3V)
3.6VI/O Tolerant to Support Mixed-Mode Signal Operation
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mAPer JESD 78, Class II
ESDProtection Exceeds JESD 22:2000-VHuman-Body Model (A114-A),1000-VCharged-Device Model (C101)

Product Introduction

Product Specifications

Consultation List

Product Introduction

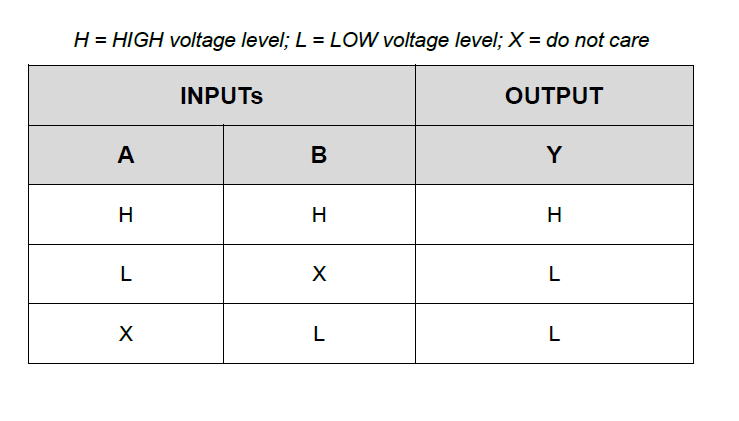

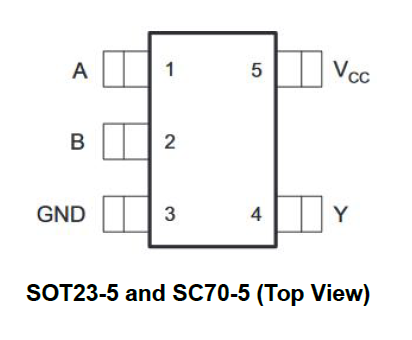

This single 2-input positive-AND gate is designed for 0.8-V to 3.6-V VCC operation. The PJ74AUP1G08 device performs the Boolean function Y=A x B in positive logic. The CMOSdevice has high output drive while maintaining low static power dissipation over a broad VCC operating range. The PJ74AUP1G08 is available in a variety of packages, including SOT23-5, SC70-5.

Product Specifications

RecommendedOperatingConditions

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC​
Operating
0.8
3.6
V
Input voltage
VI​
0
3.6
V
Output voltage
VO​
0
VCC​
V
High-level input voltage
VIH​
VCC​=0.8V
VCC​
-
V
High-level input voltage
VIH​
VCC​=1.1V to 1.95V
0.65×VCC​
-
V
High-level input voltage
VIH​
VCC​=2.3V to 2.7V
1.6
-
V
High-level input voltage
VIH​
VCC​=3V to 3.6V
2
-
V
Low-level input voltage
VIL​
VCC​=0.8V
-
0
V
Low-level input voltage
VIL​
VCC​=1.1V to 1.95V
-
0.35×VCC​
V
Low-level input voltage
VIL​
VCC​=2.3V to 2.7V
-
0.7
V
Low-level input voltage
VIL​
VCC​=3V to 3.6V
-
0.9
V
High-level output current
IOH​
VCC​=0.8V
-
-20
μA
High-level output current
IOH​
VCC​=1.1V
-
-1.1
mA
High-level output current
IOH​
VCC​=1.4V
-
-1.7
mA
High-level output current
IOH​
VCC​=1.65V
-
-1.9
mA
High-level output current
IOH​
VCC​=2.3V
-
-3.1
mA
High-level output current
IOH​
VCC​=3V
-
-4
mA
Low-level output current
IOL​
VCC​=0.8V
-
20
μA
Low-level output current
IOL​
VCC​=1.1V
-
1.1
mA
Low-level output current
IOL​
VCC​=1.4V
-
1.7
mA
Low-level output current
IOL​
VCC​=1.65V
-
1.9
mA
Low-level output current
IOL​
VCC​=2.3V
-
3.1
mA
Low-level output current
IOL​
VCC​=3V
-
4
mA
Input transition rise or fall rate
ΔT/ΔV
VCC​=0.8V to 3.6V
-
200
ns/V
Operating temperature
TA​
-
-40
85
°C

Key Electrical Characteristics

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
High-level output voltage
VOH​
VCC​=0.8~3.6V, IOH​=−20uA
VCC​−0.1
-
V
High-level output voltage
VOH​
VCC​=1.1V, IOH​=−1.1mA
0.75×VCC​
-
V
High-level output voltage
VOH​
VCC​=1.4V, IOH​=−1.7mA
1.11
-
V
High-level output voltage
VOH​
VCC​=1.65V, IOH​=−1.9mA
1.32
-
V
High-level output voltage
VOH​
VCC​=2.3V, IOH​=−2.3mA
2.05
-
V
High-level output voltage
VOH​
VCC​=2.3V, IOH​=−3.1mA
1.9
-
V
High-level output voltage
VOH​
VCC​=3V, IOH​=−2.7mA
2.72
-
V
High-level output voltage
VOH​
VCC​=3V, IOH​=−4mA
2.6
-
V
Low-level output voltage
VOL​
VCC​=0.8~3.6V, IOL​=20uA
-
0.1
V
Low-level output voltage
VOL​
VCC​=1.1V, IOL​=1.1mA
-
0.3×VCC​
V
Low-level output voltage
VOL​
VCC​=1.4V, IOL​=1.7mA
-
0.31
V
Low-level output voltage
VOL​
VCC​=1.65V, IOL​=1.9mA
-
0.31
V
Low-level output voltage
VOL​
VCC​=2.3V, IOL​=2.3mA
-
0.31
V
Low-level output voltage
VOL​
VCC​=2.3V, IOL​=3.1mA
-
0.44
V
Low-level output voltage
VOL​
VCC​=3V, IOL​=2.7mA
-
0.31
V
Low-level output voltage
VOL​
VCC​=3V, IOL​=4mA
-
0.44
V
Input leakage current
IL​
VIN​=3.6V or GND, VCC​=0~3.6V
-
0.1
μA
Power off leakage current
IOFF​
VI​ or VO​=0V to 3.6V, VCC​=0V
-
0.2
μA
Supply current
ICC​
VI​= GND or (VCC​ to 3.6V), IOUT​=0, VCC​=0.8~3.6V
-
0.5
μA
Additional supply current per input pin
ΔICC​
VI​=VCC​−0.6V, IOUT​=0
-
40
mA
