Product Description

Single 2 Input Positive AND Gate CMOS Logic Level
Shifter In a SOT23-5 and SC70-5 Package

Product Features

Wide Operating Range : 1.8 V to 5.5 V
Single-supply voltage translator at 5.0 V, 3.3 V, 2.5 V, and 1.8 V VCC
Up translation :1.2 V to 1.8 V at 1.8 VCC,1.5 V to 2.5 V at 2.5 VCC,1.8 V to 3.3 V at 3.3 VCC,3.3 V to 5.0 V at 5.0 VCC
Down translation :3.3 V to 1.8 V at 1.8 VCC,3.3 V to 2.5 V at 2.5 VCC,5.0 V to 3.3 V at 3.3 VCC
Logic output is referenced to VCC
Output Driver :8 mA Output Drive at 5 V,7 mA Output Drive at 3.3 V,3 mA Output Drive at 1.8 V
Characterized up to 50 MHz at 3.3 V VCC
5 V tolerance on input pins
Supports standard logic pinouts
Latch-up performance exceeds 250mA per JESD 17
Operating temperature Range : -40°C to 125°C

Applications

Portable applications Servers PC and Notebooks

Product Introduction

Product Specifications
Consultation List

Product Introduction

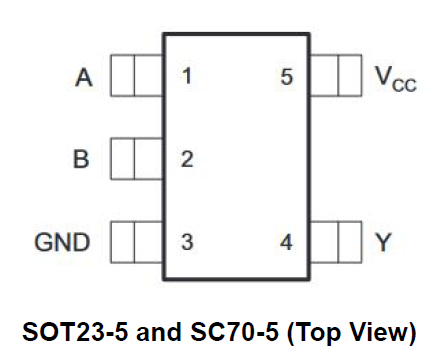

The PJ74LV1T08 is a single 2 input AND gate with reduced input thresholds to support voltage translation applications. The PJ74LV1T08 device is a low-voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8 V, 2.5 V, 3.3 V, and 5 V CMOS levels. The input is designed with a lower threshold circuit to match 1.8 V input logic at VCC = 3.3 V and can be used in 1.8 V to 3.3 V level-up translation. In addition, the 5 V tolerant input pins enable down translation (that is, 3.3 V to 2.5 V output at VCC = 2.5 V). The wide VCC range of 1.8 V to 5.5 V allows generation of desired output levels to connect to controllers or processors. The PJ74LV1T08 device is designed with current-drive capability of 8 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs. The PJ74LV1T08 is available in SOT23-5 and SC70-5 packages.

Product Specifications

Recommended Operating Conditions

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC
Operating
1.6
5.5
V
Input voltage
VI
0
5.5
V
Output voltage
VO
0
VCC
V
High-level output current
IOH
VCC = 1.8 V
-
-3
mA
High-level output current
IOH
VCC = 2.5 V
-
-5
mA
High-level output current
IOH
VCC = 3.3 V
-
-7
mA
High-level output current
IOH
VCC = 5.0 V
-
-8
mA
Low-level output current
IOL
VCC = 1.8 V
-
3
mA
Low-level output current
IOL
VCC = 2.5 V
-
5
mA
Low-level output current
IOL
VCC = 3.3 V
-
7
mA
Low-level output current
IOL
VCC = 5.0 V
-
8
mA
Input transition rise or fall rate
△T/△V
VCC = 1.8 V
-
20
ns/V
Input transition rise or fall rate
△T/△V
VCC = 3.3 V or 2.5 V
-
20
ns/V
Input transition rise or fall rate
△T/△V
VCC = 5.0 V
-
20
ns/V
Operating temperature
TA
-
-40
125
°C

Key Electrical Characteristics for TA = 25°C

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
High-level input voltage
VIH
VCC = 1.65 V to 1.8 V
0.94
-
V
High-level input voltage
VIH
VCC = 2.0 V
1.02
-
V
High-level input voltage
VIH
VCC = 2.25 V to 2.5 V
1.135
-
V
High-level input voltage
VIH
VCC = 2.75 V
1.21
-
V
High-level input voltage
VIH
VCC = 3 V to 3.3 V
1.35
-
V
High-level input voltage
VIH
VCC = 3.6 V
1.47
-
V
High-level input voltage
VIH
VCC = 4.5 V to 5.0 V
2.02
-
V
High-level input voltage
VIH
VCC = 5.5 V
2.1
-
V
Low-level input voltage
VIL
VCC = 1.65 V to 2.0 V
-
0.58
V
Low-level input voltage
VIL
VCC = 2.25 V to 2.75 V
-
0.75
V
Low-level input voltage
VIL
VCC = 3 V to 3.6 V
-
0.8
V
Low-level input voltage
VIL
VCC = 4.5 V to 5.5 V
-
0.8
V
High-level output voltage
VOH
VCC = 1.65 V to 5.5 V, IOH = -20 μA
VCC-0.1
-
V
High-level output voltage
VOH
VCC = 1.65 V, IOH = -2.0 mA
1.28
-
V
High-level output voltage
VOH
VCC = 1.8 V, IOH = -2.0 mA
1.5
-
V
High-level output voltage
VOH
VCC = 2.3 V, IOH = -2.3 mA
2.0
-
V
High-level output voltage
VOH
VCC = 2.3 V, IOH = -3.0 mA
2.0
-
V
High-level output voltage
VOH
VCC = 2.5 V, IOH = -3.0 mA
2.25
-
V
High-level output voltage
VOH
VCC = 3.0 V, IOH = -3.0 mA
2.78
-
V
High-level output voltage
VOH
VCC = 3.0 V, IOH = -5.5 mA
2.6
-
V
High-level output voltage
VOH
VCC = 3.3 V, IOH = -5.5 mA
2.9
-
V
High-level output voltage
VOH
VCC = 4.5 V, IOH = -4.0 mA
4.2
-
V
High-level output voltage
VOH
VCC = 4.5 V, IOH = -8.0 mA
4.1
-
High-level output voltage
VOH
VCC = 5.0 V, IOH = -8.0 mA
4.6
-
Low-level output voltage
VOL
VCC = 1.65 V to 5.5 V, IOL = 20 μA
-
0.1
V
Low-level output voltage
VOL
VCC = 1.65 V, IOL = 1.9 mA
-
0.2
Low-level output voltage
VOL
VCC = 2.3 V, IOL = 2.3 mA
-
0.1
Low-level output voltage
VOL
VCC = 2.3 V, IOL = 3.0 mA
-
0.15
Low-level output voltage
VOL
VCC = 3 V, IOL = 3.0 mA
-
0.1
Low-level output voltage
VOL
VCC = 3 V, IOL = 5.5 mA
-
0.2
Low-level output voltage
VOL
VCC = 4.5 V, IOL = 4.0 mA
-
0.15
Low-level output voltage
VOL
VCC = 4.5 V, IOL = 8.0 mA
-
0.3
A input
IIN
VI = GND or VCC VCC = 0 V, 1.8 V, 2.5 V, 3.3 V, 5.5 V
-
0.12
μA
Supply current
ICC
VI = GND or VCC, IOUT = 0,
-
1
μA
Additional supply current per input pin
△ICC
VCC = 5.5 V, IOUT = 0,one input at 0.3 V or 3.4 V,other input at VCC or GND
-
1.35
μA
Additional supply current per input pin
△ICC
VCC = 1.8 V, IOUT = 0,one input at 0.3 V or 1.1 V,other input at VCC or GND
-
10
μA
