The PJ74LV1T32 is a single 2-input OR gate with reduced input thresholds to support voltage translation applications.
metawells
Product Description
Single Power Supply 2-input Positive OR Gate CMOS

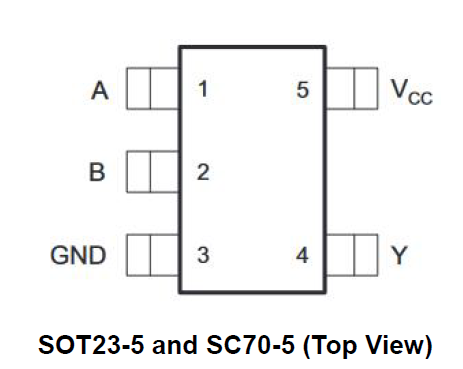

Logic Level Shifter In a SOT23-5 and SC70-5 Package
Product Features
Single-supply voltage translator at 5.0V, 3.3V, 2.5V, and 1.8V VCC
Operating range of 1.6V to 5.5V
Up translation:1.2V to 1.8V at 1.8V VCC,1.5V to 2.5V at 2.5V VCC,1.8V to 3.3V at 3.3V VCC,3.3V to 5.0V at 5.0V VCC
Down translation:3.3V to 1.8V at 1.8V VCC,3.3V to 2.5V at 2.5V VCC,5.0V to 3.3V at 3.3V VCC
Output drive:,8mA output drive at 5V,7mA output drive at 3.3V,3mA output drive at 1.8V
Characterized up to 50MHz at 3.3V VCC
5V tolerance on input pins
-40°C to +125°C operating temperature range
Supports standard logic pinouts
Applications
Product Introduction
Product Specifications
Recommended Operating Conditions
Drag the table to view the full information.
Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC
Operating
1.6
5.5
V
Input voltage
VI
-
0
5.5
V
Output voltage
VO
-
0
VCC
V
High- level output current
IOH
VCC = 1.8V
-
-3
mA
High- level output current
IOH
VCC = 2.5V
-
-5
mA
High- level output current
IOH
VCC = 3.3V
-
-7
mA
High- level output current
IOH
VCC = 5.0V
-
-8
mA
Low- level output current
IOL
VCC = 1.8V
-
3
mA
Low- level output current
IOL
VCC = 2.5V
-
5
mA
Low- level output current
IOL
VCC = 3.3V
-
7
mA
Low- level output current
IOL
VCC = 5.0V
-
8
mA
Input transition rise or fall rate
△T/△V
VCC = 1.8V
-
20
ns/V
Input transition rise or fall rate
△T/△V
VCC = 3.3V or 2.5V
-
20
ns/V
Input transition rise or fall rate
△T/△V
VCC = 5V
-
20
ns/V
Operating temperature
TA
-
-40
125
℃
Key Electrical Characteristics
Drag the table to view the full information.
Parameter
Symbol
Test Conditions
Min
Max
Units
High- level input voltage
VIH
VCC = 1.65~1.8V
0.95
-
V
High- level input voltage
VIH
VCC = 2.0V
0.99
-
V
High- level input voltage
VIH
VCC = 2.25~2.5V
1.135
-
V
High- level input voltage
VIH
VCC = 2.75V
1.21
-
V
High- level input voltage
VIH
VCC = 3~3.3V
1.35
-
V
High- level input voltage
VIH
VCC = 3.6V
1.47
-
V
High- level input voltage
VIH
VCC = 4.5V~5.0V
2.02
-
V
High- level input voltage
VIH
VCC = 5.5V
2.1
-
V
Low- level input voltage
VIL
VCC = 1.65~2.0V
-
0.58
V
Low- level input voltage
VIL
VCC = 2.25~2.75V
-
0.75
V
Low- level input voltage
VIL
VCC = 3~3.6V
-
0.8
V
Low- level input voltage
VIL
VCC = 4.5V~5.5V
-
0.8
V
High- level output voltage
VOH
VCC = 1.65~5.5V, IOH= -20μA
VCC-0.1
-
V
High- level output voltage
VOH
VCC = 1.65V, IOH= -2mA
1.28
-
V
High- level output voltage
VOH
VCC = 1.8V, IOH= -2mA
1.5
-
V
High- level output voltage
VOH
VCC = 2.3V, IOH= -3mA
2.0
-
V
High- level output voltage
VOH
VCC = 2.5V, IOH= -3mA
2.25
-
V
High- level output voltage
VOH
VCC = 3.0V, IOH= -3mA
2.78
-
V
High- level output voltage
VOH
VCC = 3.0V, IOH= -5.5mA
2.6
-
V
High- level output voltage
VOH
VCC = 3.3V, IOH= -5.5mA
2.9
-
V
High- level output voltage
VOH
VCC = 4.5V, IOH= -4mA
4.2
-
V
High- level output voltage
VOH
VCC = 4.5V, IOH= -8mA
4.1
-
V
High- level output voltage
VOH
VCC = 5.0V, IOH= -8mA
4.6
-
V
Low- level output voltage
VOL
VCC = 1.65~5.5V, IOL= 20μA
-
0.1
V
Low- level output voltage
VOL
VCC = 1.65V, IOL= 2.0mA
-
0.2
V
Low- level output voltage
VOL
VCC = 2.3V, IOL= 3mA
-
0.15
V
Low- level output voltage
VOL
VCC = 3V, IOL= 3mA
-
0.1
V
Low- level output voltage
VOL
VCC = 3V, IOL= 5.5mA
-
0.2
V
Low- level output voltage
VOL
VCC = 4.5V, IOL= 4mA
-
0.15
V
Low- level output voltage
VOL
VCC = 4.5V, IOL= 8mA
-
0.3
V
Input leakage current
Il
VIN= Vcc or GND, VCC= 0~5.5V
-
0.1
μA
Supply current
ICC
VIN= VCC or GND, IOUT=0, VCC=1.8~5.0V
-
1
μA
Additional supply current per input pin
△ICC
VCC=5.5V, one input at 0.3V or 3.4V, other input at VCC or GND, IOUT=0
-
1.35
μA
Additional supply current per input pin
△ICC
VCC=1.8V, one input at 0.3V or 1.1V, other input at VCC or GND, IOUT=0
-
10
μA
