PJ74LVC1G86

Signal Chain ICs

PJ74LVC1G86

Datasheet
Add to Consultation List

Product Description

Single 2-Input Positive EXCLUSIVE-OR Gate
In a SOT23-5 and SC70-5 Package

Product Features

Wide Supply Voltage Range : 1.65 V to 5.5 V
Max. TPD of 4.0 ns at VCC = 3.3 V
Low Power Consumption, 10 μA (Max. ICC)
±24 mA Output Drive at VCC = 3.3 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 :2000 V Human-Body Model (A114-A),1000 V Charged-Device Model (C101)
Operating temperature Range : -40°C to 125°C

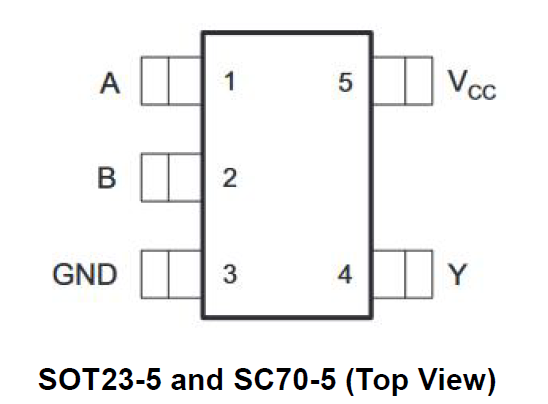

Available Package : SOT23-5 and SC70-5

Applications

Active Noise Cancellation (ANC) Blood Pressure Monitor Embedded PC Solid State Drive (SSD) : Client and Enterprise TV : LCD/Digital and High-Definition (HDTV) Tablet : Enterprise Video Analytics : Server Wireless Headset, Keyboard, and Mouse Power Supply : Telecom/Server AC/DC Controller

Product Introduction

Product Specifications
Consultation List

Product Introduction

The PJ74LVC1G86 is a single 2-Input EXCLUSIVE-OR gate. The device is designed for 1.65 V to 5.5 V for VCC operation, it can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. The PJ74LVC1G86 performs the Boolean function Y = AB + AB in positive logic. If the input is low, the other input is reproduced in true form at the output. If the input is high, the signal on the other input is reproduced inverted at the output. This device has low power consumption with maximum TPD of 4.0 ns at 3.3 V and 15 pF capacitive load. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The PJ74LVC1G86 is available in SOT23-5 and SC70-5 packages.

Product Specifications

Recommended Operating Conditions

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC
Operating
1.65
5.5
V
Data retention only
1.5
-
V
Input voltage
VI
0
5.5
V
Output voltage
VO
-
VCC
V
High-level input voltage
VIH
VCC = 1.65 V to 1.95 V
0.65 x VCC
-
V
High-level input voltage
VIH
VCC = 2.3 V to 2.7 V
1.7
-
V
High-level input voltage
VIH
VCC = 3 V to 3.6 V
2
-
V
High-level input voltage
VIH
VCC = 4.5 V to 5.5 V
0.7 x VCC
-
V
Low-level input voltage
VIL
VCC = 1.65 V to 1.95 V
-
0.35 x VCC
V
Low-level input voltage
VIL
VCC = 2.3 V to 2.7 V
-
0.7
V
Low-level input voltage
VIL
VCC = 3 V to 3.6 V
-
0.8
V
Low-level input voltage
VIL
VCC = 4.5 V to 5.5 V
-
0.3 x VCC
V
High-level output current
IOH
VCC = 1.65 V
-
-4
mA
High-level output current
IOH
VCC = 2.3 V
-
-8
mA
High-level output current
IOH
VCC = 3 V
-
-16
mA
High-level output current
IOH
VCC = 3 V
-
-24
mA
High-level output current
IOH
VCC = 4.5 V
-
-32
mA
Low-level output current
IOL
VCC = 1.65 V
-
4
mA
Low-level output current
IOL
VCC = 2.3 V
-
8
mA
Low-level output current
IOL
VCC = 3 V
-
16
mA
Low-level output current
IOL
VCC = 3 V
-
24
mA
Low-level output current
IOL
VCC = 4.5 V
-
32
mA
Input transition rise or fall rate
△T/△V
VCC = 1.8 V ±0.15 V, 2.5 V ±0.2 V
-
20
ns/V
Input transition rise or fall rate
△T/△V
VCC = 3.3 V ±0.3 V
-
10
ns/V
Input transition rise or fall rate
△T/△V
VCC = 5 V ±0.5 V
-
5
ns/V
Operating temperature
TA
-
-40
125
°C

Key Electrical Characteristics

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
High-level output voltage
VOH
VCC = 1.65~5.5 V, IOH = -100 μA
VCC-0.1
-
V
High-level output voltage
VOH
VCC = 1.65 V, IOH = -4 mA
1.2
-
V
High-level output voltage
VOH
VCC = 2.3 V, IOH = -8 mA
1.9
-
V
High-level output voltage
VOH
VCC = 3 V, IOH = -16 mA
2.4
-
V
High-level output voltage
VOH
VCC = 3 V, IOH = -24 mA
2.3
-
V
High-level output voltage
VOH
VCC = 4.5 V, IOH = -32 mA
3.8
-
V
Low-level output voltage
VOL
VCC = 1.65~5.5 V, IOL = 100 μA
-
0.1
V
Low-level output voltage
VOL
VCC = 1.65 V, IOL = 4 mA
-
0.45
V
Low-level output voltage
VOL
VCC = 2.3 V, IOL = 8 mA
-
0.3
V
Low-level output voltage
VOL
VCC = 3 V, IOL = 16 mA
-
0.4
V
Low-level output voltage
VOL
VCC = 3 V, IOL = 24 mA
-
0.55
V
Low-level output voltage
VOL
VCC = 4.5 V, IOL = 32 mA
-
0.55
V
Input leakage current
IL
VIN = 5.5 V or GND, VCC = 0~5.5 V
-
±5
μA
Power off leakage current
IOFF
VIN or GND, VCC = 0~5.5 V
-
±10
μA
Quiescent supply current
IQ
VIN = VCC or GND, IOUT = 0,VCC = 1.65~5.5 V
-
10
μA
Additional quiescent supply current per input pin
△IQ
VCC = 3~5.5 V, one input at VCC-0.6 V, other input at VCC or GND
-
500
μA
