PJ74LVC1G06

Signal Chain ICs

PJ74LVC1G06

Datasheet
Add to Consultation List

Product Description

Single Inverter Buffer/Driver With Open-Drain Output

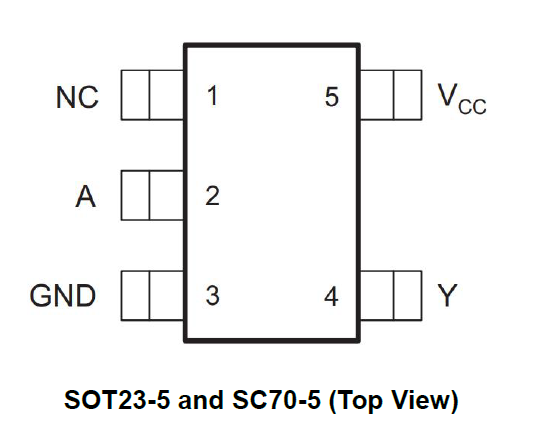

In a SOT23-5 and SC70-5 Package

Product Features

Supports 5-V VCC Operation
Input and Open-Drain Output Accept Voltage up to 5.5V
Max Tpd of 4.5 ns at 3.3 V
Low Power Consumption, 10-μA Max ICC
±24-mA Output Drive at 3.3 V for open-drain devices
IOFF Supports Partial-Power-Down Mode and Back-Drive
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
Can Be Used For Up or Down Translation
Schmitt Trigger Action on All Ports
ESD Protection Exceeds JESD 22:2000-V Human-Body Model (A114-A),1000-V Charged-Device Model (C101)

Applications

AV Receiver Blu-ray Player and Home Theater DVD Recorders and Players Desktop or Notebook PCs Digital Radio or Internet Radio Players Digital Video Cameras (DVC) Embedded PC GPS: Personal Navigation Devices Mobile Internet Devices Network Projector Front-Ends Portable Media Players Pro Audio Mixers Smoke Detectors Solid State Drive (SSD): Enterprise High-Definition (HDTV) Tablet: Enterprise Audio Dock: Portable DLP Front Projection Systems DVR and DVS Digital Picture Frame (DPF) Digital Still Cameras

Product Introduction

Product Specifications
Consultation List

Product Introduction

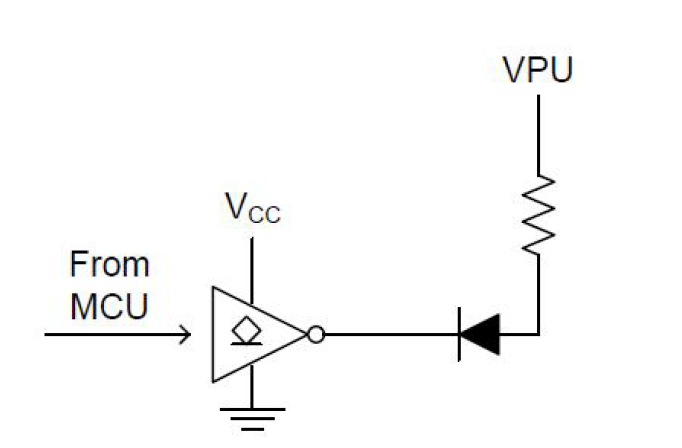

This single inverter buffer and driver is designed for 1.65-V to5.5-V VCC operation. The output of the PJ74LVC1G06 device is open-drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32mA. This device is fully specified for partial- power-down applications using IOFF circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

Product Specifications

Recommended Operating Conditions

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Units
Supply voltage
VCC
Operating
1.65
5.5
V
Data retention only
1.5
-
V
Input voltage
VI
0
5.5
V
Output voltage
VO
5.5
V
High- level input voltage
VIH
VCC = 1.65V to 1.95V
0.65 x VCC
-
V
High- level input voltage
VIH
VCC = 2.3V to 2.7V
1.7
-
V
High- level input voltage
VIH
VCC = 3V to 3.6V
2
-
V
High- level input voltage
VIH
VCC = 4.5V to 5.5V
0.7 x VCC
-
V
Low- level input voltage
VIL
VCC = 1.65V to 1.95V
-
0.35 x VCC
V
Low- level input voltage
VIL
VCC = 2.3V to 2.7V
-
0.7
V
Low- level input voltage
VIL
VCC = 3V to 3.6V
-
0.8
V
Low- level input voltage
VIL
VCC = 4.5V to 5.5V
-
0.3 x VCC
V
Low- level output current
IOL
VCC = 1.65V
-
4
mA
Low- level output current
IOL
VCC = 2.3V
-
8
mA
Low- level output current
IOL
VCC = 3V
-
16
mA
Low- level output current
IOL
VCC = 3V
-
24
mA
Low- level output current
IOL
VCC = 4.5V
-
32
mA
Input transition rise or fall rate
△T/△V
VCC = 1.8V±0.15V,2.5V±0.2V
-
20
ns/V
Input transition rise or fall rate
△T/△V
VCC = 3.3V±0.3V
-
10
ns/V
Input transition rise or fall rate
△T/△V
VCC = 5V±0.5V
-
5
ns/V
Operating temperature
TA
-40
125
°C

Key Electrical Characteristics

Drag the table to view the full information.

Parameter
Symbol
Test Conditions
Min
Max
Unit
Low- level output voltage
VOL
VCC = 1.65~5.5V, IOL= 100μA
-
0.1
V
Low- level output voltage
VOL
VCC = 1.65V, IOL= 4mA
-
0.45
V
Low- level output voltage
VOL
VCC = 2.3V, IOL= 8mA
-
0.3
V
Low- level output voltage
VOL
VCC = 3V, IOL= 16mA
-
0.4
V
Low- level output voltage
VOL
VCC = 3V, IOL= 24mA
-
0.55
V
Low- level output voltage
VOL
VCC = 4.5V, IOL= 32mA
-
0.55
V
Inflection-point current
Il
VIN= 5.5V or GND, VCC= 0~5.5V
-
±1
μA
Power off leakage current
IOFF
VI or VO = 5.5V, VCC=0V
-
±10
μA
Supply current
ICC
VI= 5.5V or GND, IOUT=0, VCC=1.65~5.5V
-
10
μA
Additional supply current per input pin
△ICC
VCC=3~5.5V, one input at VCC-0.6V, other input at VCC or GND
-
500
μA
